Fuel cell stack Introduction Fuel cell stack Introduction

Proton exchange membrane fuel cell stack is a hydrogen and oxygen electrochemical reaction output power of the device, with high energy density, environment-friendly features such as hydrogen, the oxidant for the air.

Fuel cell stack Feature Fuel cell stack Feature
  • Quick start and dyna...
  • Automotive products
  • High reliability, lo...
  • Air does not get wet...
  • Fuel cell stack
Product description Product parameters Product case

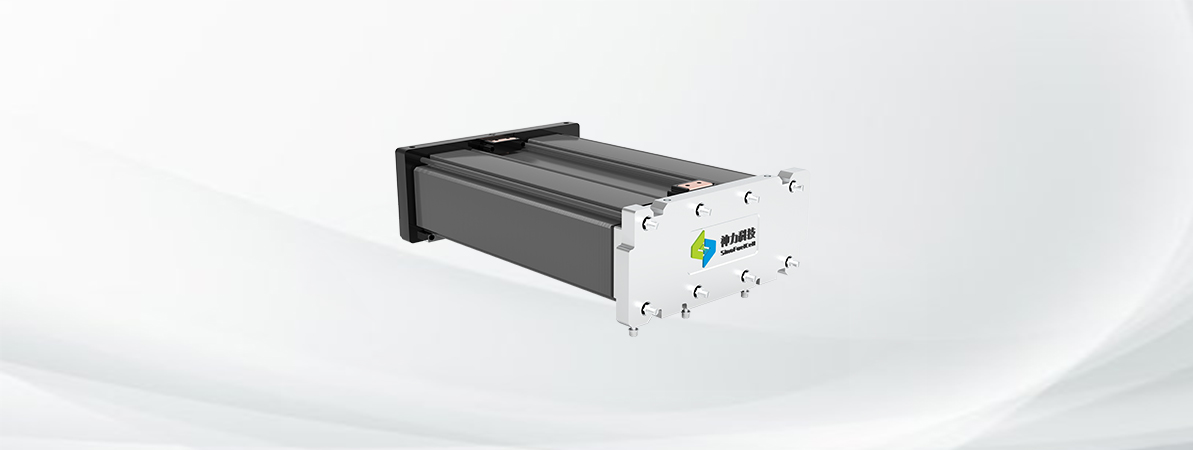

SD-C series of water-cooled proton exchange membrane fuel cell stack can be customized according to the customer application power demand flexible and targeted. SL-C series of stacks is a part of the national production, with independent intellectual property rights of products, with no humidification, high power density, low temperature, to meet the needs of vehicles and other characteristics.The SL-C series of reactors is designed to provide fuel cell system customers with a wide range of core components that are easy to use and have a wide range of applications and can be easily used in passenger cars, logistics vehicles, passenger cars,

技术参数

功率(kW

3

5

10

15

30

40

额定电流(A

348

348

348

348

348

348

额定电压(VDC

8

14

28

42

86

114

重量(kg

8

9

13

16

28

35

尺寸(长**高)

77*350*190

104*350*190

167*350*190

229*350*190

420*350*190

545*350*190

低温储藏

-40℃(在实施吹扫的基础上)

工作温度

55-75℃(取决于电堆状态)

燃料

氢气浓度>95%(压力需求:0-50kPa

空气

无增湿(0-50kPa,需使用除尘除硫过滤器)

应用场景

车载、电站

*基于SAE J2719-2011
